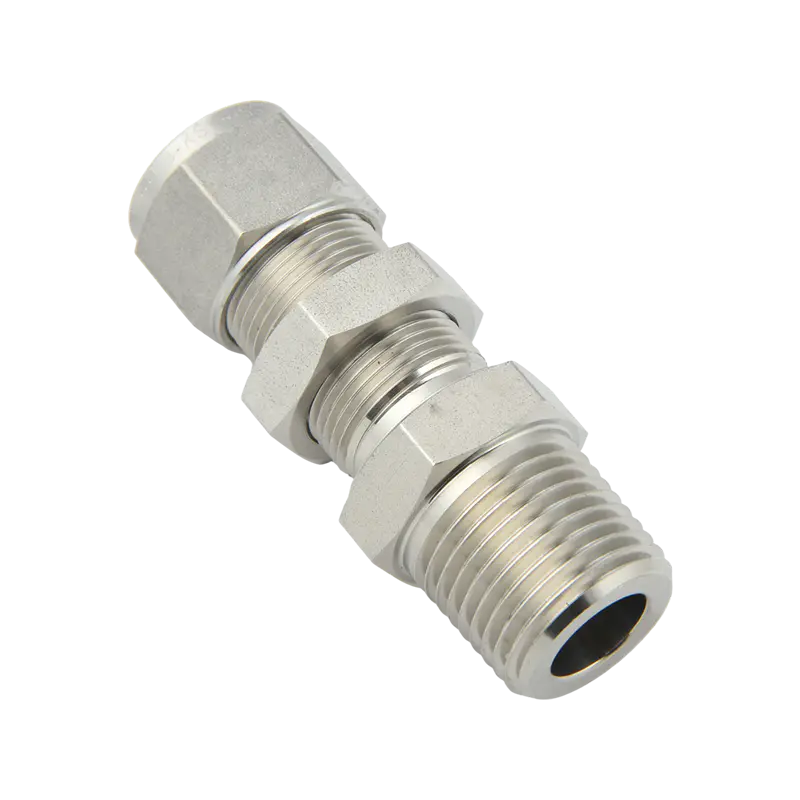

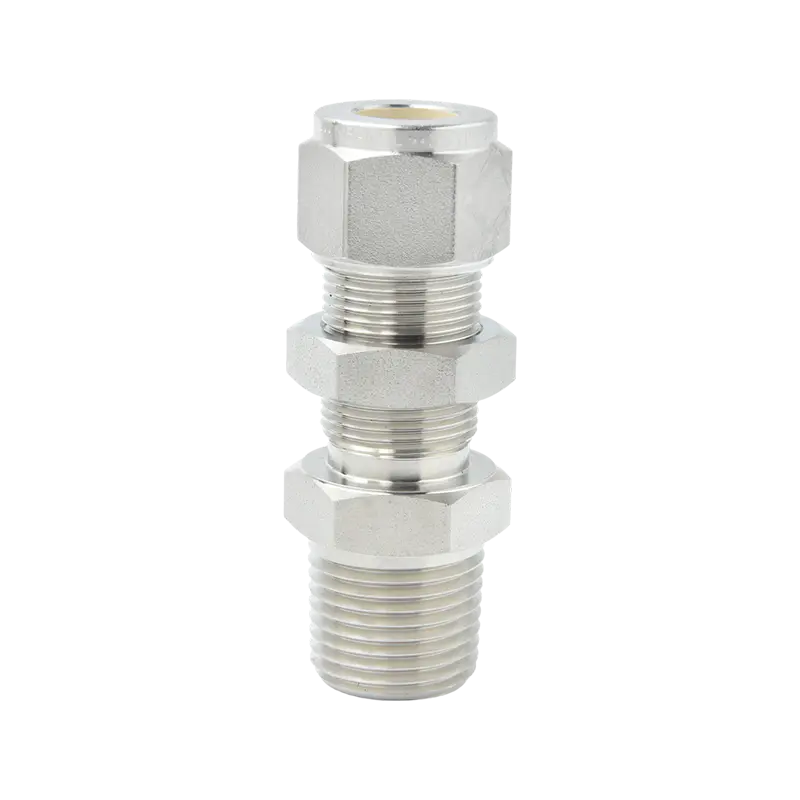

316L فولاد ضد زنگ فشرده سازی رزوه خارجی از طریق اتصال صفحه

شماره کاتالوگ

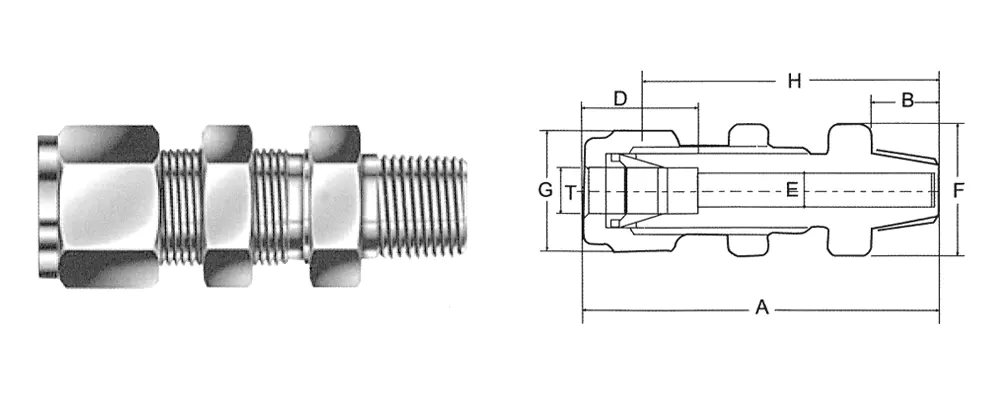

TUBE O.D.

PIPESIZE PT/NPT

A

B

D

E

F

G

H

اندازه سوراخ پانل

حداکثر ضخامت پانل

BMC-6-1

6

1/8

49.8

10

15.8

4.8

16

14

42

11.5

11.2

BMC-6-2

6

1/4

53.8

14

15.8

4.8

16

14

46

11.5

11.2

BMC-6-3

6

3/8

53.8

14

15.8

4.8

17

14

46

11.5

11.2

BMC-6-4

6

1/2

61.8

19

15.8

4.8

22

14

54

11.5

11.2

BMC-8-1

8

1/8

52.1

10

16.7

6.4

16

16

44.4

13.1

11.2

BMC-8-2

8

1/4

56.7

14

16.7

6.4

19

16

49

13.1

11.2

BMC-8-3

8

3/8

56.7

14

16.7

6.4

19

16

49

13.1

11.2

BMC-8-4

8

1/2

63.7

19

16.7

6.4

22

16

56

13.1

11.2

BMC-10-2

10

1/4

58.1

14

19.6

7.1

22

19

50.5

16.3

11.2

BMC-10-3

10

3/8

58.1

14

19.6

7.9

22

19

50.5

16.3

11.2

BMC-10-4

10

1/2

64.9

19

19.6

7.9

22

19

57.3

16.3

11.2

BMC-12-2

12

1/4

63.9

14

23.8

7.1

24

22

53.1

19.5

12.7

BMC-12-3

12

3/8

63.9

14

23.8

9.5

24

22

53.1

19.5

12.7

BMC-12-4

12

1/2

69.6

19

23.8

9.5

24

22

58.8

19.5

12.7

BMC-02-1

1/4

1/8

49.8

10

15.8

4.8

16

14

42

11.5

11.2

BMC-02-2

1/4

1/4

53.8

14

15.8

4.8

16

14

46

11.5

11.2

BMC-02-3

1/4

3/8

53.8

14

15.8

4.8

17

14

46

11.5

11.2

BMC-02-4

1/4

1/2

61.8

19

15.8

4.8

22

14

54

11.5

11.2

BMC-03-2

3/8

1/4

57.6

14

19.6

7.1

19

17

50

14.7

11.2

BMC-03-3

3/8

3/8

57.6

14

19.6

7.1

19

17

50

14.7

11.2

BMC-03-4

3/8

1/2

64.9

19

19.6

7.1

24

17

57.3

14.7

11.2

BMC-04-2

1/2

1/4

63.5

14

23.4

7.1

24

22

53.1

19.5

12.7

BMC-04-3

1/2

3/8

63.5

14

23.4

9.5

24

22

53.1

19.5

12.7

BMC-04-4

1/2

1/2

69.2

19

23.4

10.4

24

22

58.8

19.5

12.7
