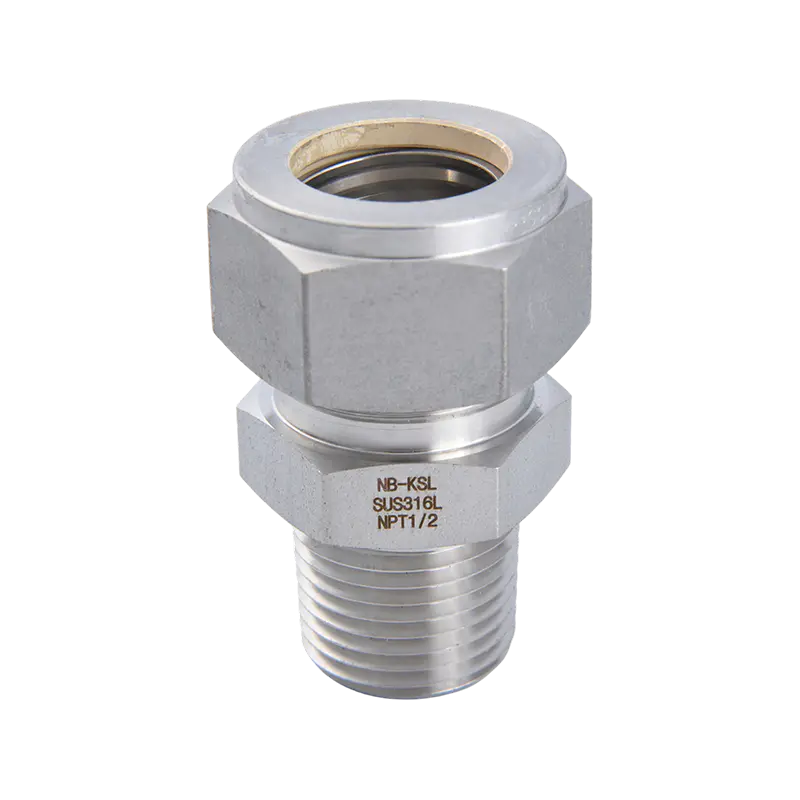

اتصال رزوه خارجی با اتصالات فشرده سازی فولاد ضد زنگ 316L

شماره کاتالوگ

T TUBE O.D.

PT-NPT اندازه لوله نر

A

B

D

E

F

G

H

MC-3-1

3

1/8

32

10

13.5

2.4

12

12

25

MC-3-2

3

1/4

37

14

13.5

2.4

14

12

30

MC-4-1

4

1/8

32.2

10

13.7

3

12

12

25.5

MC-4-2

4

1/4

36.7

14

13.7

3

14

12

30

MC-6-1

6

1/8

33.8

10

15.8

4.8

14

14

26

MC-6-2

6

1/4

38.8

14

15.8

4.8

14

14

31

MC-6-3

6

3/8

38.8

14

15.8

4.8

17

14

31

MC-6-4

6

1/2

45.1

19

15.8

4.8

22

14

37.3

MC-8-1

8

1/8

34.7

10

16.7

4.8

14

16

27

MC-8-2

8

1/4

39.7

14

16.7

6

14

16

32

MC-8-3

8

3/8

39.7

14

16.7

6.4

17

16

32

MC-8-4

8

1/2

45.8

19

16.7

6.4

22

16

38.1

MC-10-1

10

1/8

36.6

10

19.6

4.8

17

19

29

MC-10-2

10

1/4

40.6

14

19.6

7.1

17

19

33

MC-10-3

10

3/8

40.6

14

19.6

9.5

17

19

33

MC-10-4

10

1/2

46.5

19

19.6

7.9

22

19

38.9

MC-10-6

10

3/4

48

19

19.6

7.9

27

19

40.4

MC-12-1

12

1/8

39.8

10

23.8

4.8

19

22

29

MC-12-2

12

1/4

44.1

14

23.8

7.1

19

22

33.3

MC-12-3

12

3/8

44.1

14

23.8

9.5

19

22

33.3

MC-12-4

12

1/2

49.7

19

23.8

9.5

22

22

38.9

MC-12-6

12

3/4

51.2

19

23.8

9.5

27

22

40.4

MC-12-8

12

1"

57.8

22

23.8

9.5

35

22

47

MC-14-3

14

3/8

44.8

14

24.8

9.5

24

27

34

MC-14-4

14

1/2

49.7

19

24.8

11.1

24

27

38.9

MC-14-6

14

3/4

51.2

19

24.8

11.1

27

27

40.4

MC-16-3

16

3/8

44.4

14

24.4

9.5

24

27

34

MC-16-4

16

1/2

49.3

19

24.4

11.9

24

27

38.9

MC-16-6

16

3/4

50.8

19

24.4

12.7

27

27

40.4

MC-18-3

18

3/8

46.2

14

24.8

9.5

27

30

35.4

MC-18-4

18

1/2

51.2

19

24.8

11.9

27

30

40.4

MC-18-6

18

3/4

51.2

19

24.8

15.1

27

30

40.4

MC-18-8

18

1"

57.8

22

24.8

15.1

35

30

47

MC-20-4

20

1/2

52.7

19

25.5

11.9

30

32

42.2

MC-20-6

20

3/4

52.7

19

25.5

15.9

30

32

42.2

MC-22-4

22

1/2

52.7

19

25.5

11.9

30

32

42.2

MC-22-6

22

3/4

52.7

19

25.5

15.9

30

32

42.2

MC-22-8

22

1"

57.5

22

25.5

18.3

35

32

47

MC-25-4

25

1/2

57.9

19

31.7

11.9

35

38

45.2

MC-25-6

25

3/4

57.9

19

31.7

15.9

35

38

45.2

MC-25-8

25

1"

62.7

22

31.7

21.8

35

38

50

شماره کاتالوگ

T TUBE O.D.

PT-NPT اندازه لوله نر

A

B

D

E

F

G

H

MC-01-1

1/8

1/8

32.5

10

14

2.4

12

12

25

MC- 01- 2

1/8

1/4

37.5

14

14

2.4

14

12

30

MC-01-3

1/8

3/8

37.5

14

14

2.4

14

12

30

MC- 01- 4

1/8

1/2

43.8

19

14

2.4

22

12

36.3

MC-02-1

1/4

1/8

33.8

10

15.8

4.8

14

14

26

MC- 02- 2

1/4

1/4

38.8

14

15.8

4.8

14

14

31

MC-02-3

1/4

3/8

38.8

14

15.8

4.8

17

14

31

MC- 02- 4

1/4

1/2

45.1

19

15.8

4.8

22

14

37.3

MC-02-6

1/4

3/4

46.1

19

15.8

4.8

27

14

38.3

MC- 03- 1

3/8

1/8

36.6

10

19.6

4.8

17

17

29

MC-03-2

3/8

1/4

40.1

14

19.6

7.1

17

17

32.5

MC- 03-3

3/8

3/8

40.1

14

19.6

7.1

17

17

32.5

MC-03-4

3/8

1/2

46.5

19

19.6

7.1

22

17

38.9

MC- 03-6

3/8

3/4

47.9

19

19.6

7.1

27

17

40.3

MC-04-1

1/2

1/8

39.2

10

23.4

4.8

19

22

29

MC- 0 4-2

1/2

1/4

43.2

14

23.4

7.1

19

22

33

MC-04-3

1/2

3/8

43.5

14

23.4

9.5

19

22

33.3

MC- 04-4

1/2

1/2

49.1

19

23.4

10.4

22

22

38.9

MC-04-6

1/2

3/4

50.5

19

23.4

10.4

27

22

40.3

MC- 0 4-8

1/2

1 "

57.2

22

23.4

10.4

35

22

47

MC-05-3

5/8

3/8

44.4

14

24.4

9.5

24

27

34

MC- 05- 4

5/8

1/2

49.3

19

24.4

11.9

24

27

38.9

MC-05-6

5/8

3/4

50.7

19

24.4

12.7

27

27

40.3

MC- 06-4

3/4

1/2

50.7

19

24.4

11.9

27

30

40.3

MC-06-6

3/4

3/4

50.7

19

24.4

15.7

27

30

40.3

MC- 06-8

3/4

1 "

57.4

22

24.4

15.7

35

30

47

MC-08-4

1 "

1/2

57.9

19

31.7

11.9

35

38

45.2

MC- 08- 6

1 "

3/4

57.9

19

31.7

15.9

35

38

45.2

MC-08-8

1 "

1 "

62.7

22

31.7

22.4

35

38

50

کاتالوگ
NUMBER

A

T

L

M

I

D

W

K

N

MC-01-01

1/8

G1/8

30.9

7.1

14

2.4

14

13.8

23.4

MC- 01-02

1/8

G1/ 4

36.7

11.2

14

2.4

19

18

29.2

MC-02-01

1/4

G1/8

32.8

7.1

17.8

4.8

14

13.8

25

MC- 02-02

1/4

G1/ 4

38

11.2

17.8

4.8

19

18

30.2

MC-02-03

1/4

G3/8

39.3

11.2

17.8

4.8

22

21.8

31.5

MC- 02-04

1/4

G1/2

45.1

14.2

17.8

4.8

27

26

37.3

MC-03-01

3/8

G1/8

35.7

7.1

19.6

4.8

17

13.8

28.1

MC- 03-02

3/8

G1/4

39.4

11.2

19.6

6.4

19

18

31.8

MC-03-03

3/8

G3/8

40.3

11.2

19.6

7.1

22

21.8

33

MC- 03-04

3/8

G1/2

46.5

14.2

19.6

7.1

27

26

38.9

MC-03-06

3/8

G3/4

50.3

15.7

19.6

7.1

35

32

42.7

MC-04-01

1/2

G1/8

38.6

7.1

23.4

4.8

19

13.8

28.4

MC-04-02

1/2

G1/4

42.7

11.2

23.4

4.8

19

18

32.5

MC- 04-03

1/2

G3/8

43.2

11.2

23.4

7.9

22

21.8

33

MC-04-04

1/2

G1/2

49.1

14.2

23.4

10.4

27

26

38.9

MC- 04- 06

1/2

G3/ 4

52.9

15.7

23.4

10.4

35

32

42.7

MC-04-08

1/2

G1"

55.4

18.3

23.4

10.4

41

39

45.2

MC- 06-04

3/4

G1/2

49.3

14.2

24.4

11.9

27

26

38.9

MC-06-06

3/4

G3/4

53.1

15.7

24.4

15.9

35

32

42.7

MC- 06-08

3/4

G 1 "

55.6

18.3

24.4

15.9

41

39

45.2

MC-08-04

1 "

G1/2

56.2

14.2

31.7

11.9

35

26

43.5

MC- 08-06

1 "

G3/ 4

57

15.7

31.7

15.9

35

32

44.3

MC-08-08

1 "

G1"

60.5

18.3

31.7

19.8

41

39

47.8

شماره کاتالوگ

A

T

M

l

D

W

K

N

MC-3-01

3

1/8

30.9

7.1

14

2.4

14

13.8

23.4

MC-3-02

3

1/4

36.7

11.2

14

2.4

19

18

29.2

MC-6-01

6

1/8

32.8

7.1

15.8

4.8

14

13.8

25

MC- 6-02

6

1/4

38

11.2

15.8

4.8

19

18

30.2

MC-6-03

6

3/8

39.3

11.2

15.8

4.8

22

21.80

31.5

MC- 6-04

6

1/2

45.1

14.2

15.8

4.8

27

26

37.3

MC-8-01

8

1/8

33.7

7.1

16.7

4.8

14

13.8

26

MC-8-02

8

1/4

38.9

11.2

16.7

6.4

19

18.00

31.2

MC-8-03

8

3/8

40

11.2

16.7

6.4

22

21.8

32.3

MC-8-04

8

1/2

45.8

14.2

16.7

6.4

27

26.00

38.1

MC-10-01

10

1/8

35.7

7.1

19.6

4.8

17

13.8

28.1

MC-10-02

10

1/4

39.4

11.2

19.6

6.4

19

18

31.8

MC-10-03

10

3/8

40.6

11.2

19.6

7.9

22

21.80

33

MC-10-04

10

1/2

46.5

14.2

19.6

7.9

27

26

38.9

MC-12-01

12

1/8

39.2

7.1

23.8

4.8

19

13.80

28.4

MC-12-02

12

1/4

43.3

11.2

23.8

6.4

19

18

32.5

MC-12-03

12

3/8

43.8

11.2

23.8

7.9

22

21.80

33

MC-12-04

12

1/2

49.7

14.2

23.8

9.5

27

26

38.9

MC-12-06

12

3/4

53.5

15.7

23.8

9.5

35

32.00

42.7

MC-14-03

14

3/8

44.6

11.2

24.8

7.9

22

21.8

33.8

MC-14-04

14

1/2

49.7

14.2

24.8

11.1

27

26.00

38.9

MC-15-04

15

1/2

49.7

14.2

24.4

11.9

27

26

38.9

MC-16-03

16

3/8

44.2

11.2

24.4

7.9

22

21.80

33.8

MC-16-04

16

1/2

49.3

14.2

24.4

11.9

27

26

38.9

MC-18-04

18

1/2

49.7

14.2

24.8

11.9

27

26.00

38.9

MC-22-06

22

3/4

53.2

15.7

25.5

15.9

35

32

42.7

MC-25-06

25

3/4

57

15.7

31.7

15.9

35

32.00

44.3
