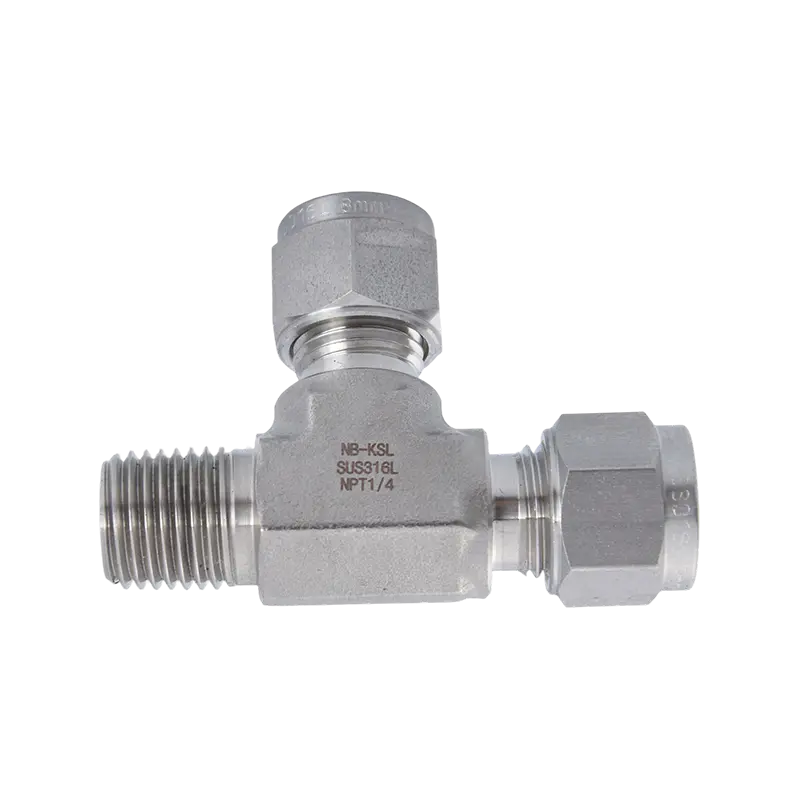

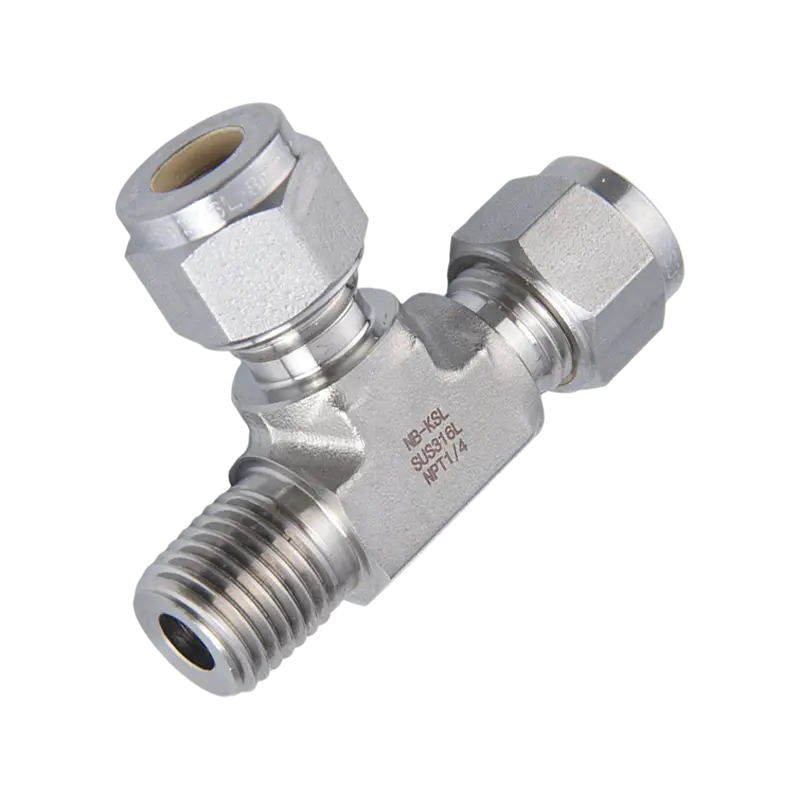

سه راهی کناری رزوه خارجی با اتصالات فشاری فولاد ضد زنگ 316L

شماره کاتالوگ

تی تیوب

O.D.

PT-NPT MALE

اندازه لوله

A

B

D

E

E1

F

G

H

J

K

M RT-4-1

4

1/8

25.7

10

13.7

3

4.8

12.7

12

19

38.6

45.3

MRT-4-2

4

1/4

27.5

14

13.7

3

7.1

16

12

20.8

44.8

51.5

MRT-6-1

6

1/8

274

10

15.8

4.8

4.8

12.7

14

19.6

39.2

47

MRT-6-2

6

1/4

292

14

15.8

4.8

6

16

14

21.4

45.4

53.2

M RT-6-3

6

3/8

302

14

15.8

4.8

9.5

17.5

14

22.4

46.9

54.7

MRT-6-4

6

12

31.7

19

15.8

4.8

11.9

20.6

14

23.9

56.9

64.7

MRT-8-1

8

1/8

30.1

10

16.7

6

4.8

16

16

22.4

43.4

51.1

MRT-8-2

8

1/4

30.1

14

16.7

6

6

16

16

22.4

46.4

54.1

MRT-8-3

8

3/8

30.8

19

16.7

6.4

9.5

17.5

16

23.1

47.6

55.3

MRT-8-4

8

1/2

32.7

19

16.7

6.4

11.9

20.6

16

24.9

57.9

65.7

M RT-10-1

10

1/ب

31.5

10

19.6

7.9

4.8

17.5

19

23.9

46.4

54

MRT-10-2

10

1/4

31.5

14

19.6

7.9

7.1

17.5

19

23.9

48.9

56.5

MRT-10-3

10

3/8

31.5

14

19.6

7.9

7.9

17.5

19

23.9

48.9

56.5

MRT-10-4

10

12

33.5

19

19.6

7.9

11.9

20.6

19

25.9

58.9

66.5

MRT-12-2

12

114

36.7

14

23.8

9.5

7.1

20.6

22

25.9

54.1

64.9

MRT-12-3

12

3/8

36.7

14

23.8

9.5

9.5

20.6

22

25.9

54.1

64.9

MRT-12-4

12

1/2

36.7

19

23.8

9.5

9.5

20.6

22

25.9

58.9

69.7

MRT-12-6

12

3/4

38.8

19

23.8

9.5

157

28

22

28

64.8

75.6

MRT-14-3

14

3/8

39.5

14

24.8

11.1

9.5

23

27

28.7

57.7

68.5

M RT-14-4

14

1/2

39.5

19

24.8

11.1

11.1

23

27

28.7

627

73.5

M RT-14-6

14

3/4

38.8

19

24.8

11.1

15.7

28

27

28

64.8

75.6

MRT-16-3

16

3/8

39.1

14

24.4

127

9.5

22

27

28.7

57.7

68.1

M RT-16-4

16

1/2

39.1

19

24.4

12.7

11.9

22

27

28.7

627

73.1

M RT-16-6

16

3/4

38.4

19

24.4

127

157

28

27

28

64.8

75.2

MRT-18-3

18

3/8

38.8

14

24.8

15.1

9.5

28

30

28

60.5

71.3

MRT-18-4

18

1/2

38.8

19

24.8

15.1

11.9

28

30

28

64.8

75.6

M RT-18-6

18

3/4

38.8

19

24.8

15.1

15.1

28

30

28

64.8

75.6

MRT-20-4

20

12

46

19

25.5

15.9

11.9

34.5

32

35.5

77.2

87.7

M RT-20-6

20

3/4

46

19

25.5

15.9

159

34.5

32

35.5

77.2

87.7

MRT-22-4

22

12

46

19

25.5

18.3

11.9

34.5

32

35.5

77.2

87.7

M RT-22-6

22

3/4

46

19

25.5

18.3

157

34.5

32

35.5

77.2

87.7

MRT-25-4

25

1/2

49.5

19

31.7

21.8

11.9

34.5

38

36.8

78.5

91.2

MRT-25-6

25

34

49.5

19

31.7

21.8

15.7

34.5

38

36.8

78.5

91.2

MRT-25-8

25

1

49.5

22

31.7

21.8

21.8

34.5

38

36.8

81.3

94

MRT-01-1

1/8

1/8

26.1

10

14

2.4

4.8

12.7

12

18.6

38.2

45.7

MRT-01-2

1/8

1/4

28

14

14

2.4

6

16

12

20.5

44.5

52

MRT-02-1

1/4

1/8

27.4

10

15.8

4.8

4.8

12.7

14

19.6

39.2

47

MRT-02-2

1/4

1/4

292

14

15.8

4.8

6

16

14

21.4

45.4

53.2

MRT-02-3

1/4

3 /B

302

14

15.8

4.8

9.5

17.5

14

22.4

46.9

54.7

MRT-02-4

1/4

1/2

31.7

19

15.8

4.8

11.9

20.6

14

23.9

56.9

64.7

MRT-03-1

38

1/8

30.7

10

19.6

7.1

4.8

16

17

23.1

44.1

51.7

M RT-03-2

38

114

30.7

14

19.6

7.1

7.1

16

17

23.1

47.1

54.7

MRT-03-3

38

3/B

30.7

14

19.6

7.1

7.1

16

17

23.1

47.6

55.2

M RT-03-4

38

1/2

33.5

19

19.6

7.1

11.9

20.6

17

25.9

58.9

66.5

MRT-04-2

1/2

114

36.1

14

23.4

10.4

7.1

20.6

22

25.9

54.1

64.3

MRT-04-3

1/2

3/B

36.1

14

23.4

10.4

9.5

20.6

22

25.9

54.1

64.3

M RT-04-4

1/2

1/2

36.1

19

23.4

10.4

10.4

20.6

22

25.9

58.9

69.1

M RT-04-6

1/2

314

382

19

23.4

10.4

15.7

28

22

28

64.8

75

MRT-05-3

58

3/8

39.1

14

24.4

12.7

9.5

22

27

28.7

57.7

68.1

M RT-05-4

5/8

1/2

39.1

19

24.4

12.7

11.9

22

27

28.7

627

73.1

MRT-05-6

5V8

3/4

384

19

24.4

12.7

15.7

28

27

28

64.8

75.2

MRT-06-4

34

1/2

38.4

14

24.4

15.7

11.9

28

30

28

64.8

75.2

M RT-06-6

34

3/4

38.4

19

24.4

15.7

15.7

28

32

28

64.8

75.2

M RT-08-6

1"

3/4

49.5

19

31.7

22.4

15.9

34.5

38

36.8

78.5

91.2

MRT-08-8

1"

1/1

49.5

22

31.7

22.4

224

34.5

38

36.8

81.3

94
