اتصالات لوله فولادی ضد زنگ

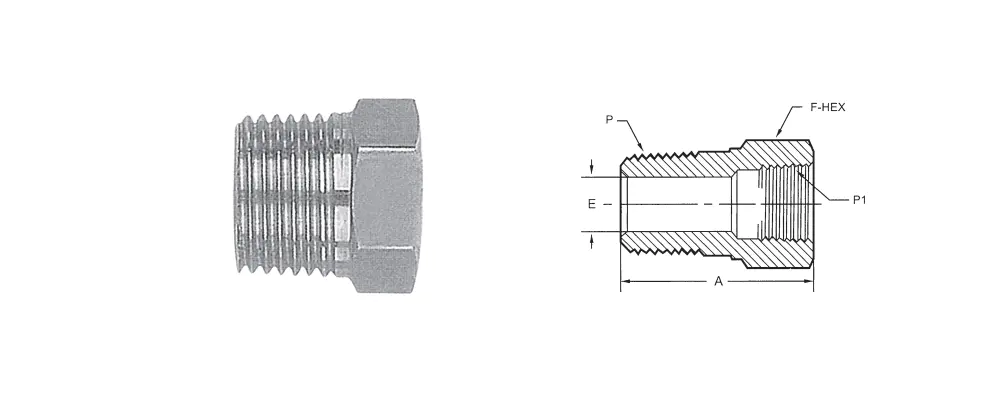

P MALE PT/NPT SIZE

اندازه PT/NPT زن P1

شماره کاتالوگ

A

E MIN OPENING

F HEX FLAT

1/4

1/8

RB-02-01

21.8

7.1

14

3/8

1/8

RB- 03-01

21.8

8.6

17

3/8

1/4

RB-03-02

30.2

9.6

19

1/2

1/8

RB-04-01

27

8.6

22

1/2

1/4

RB-04-02

27

11

22

1/2

3/8

RB-04-03

27

11.9

22

3/4

1/4

RB-06-02

27.4

11

27

3/4

3/8

RB-06-03

27.4

15

27

3/4

1/2

RB-06-04

41.4

15.7

27

1 "

1/4

RB-08-02

34.8

11

35

1 "

3/8

RB-08-03

34.8

15

35

1 "

1/2

RB-08-04

34.8

18.5

35

1"

3/4

RB-08-06

47

22.5

35
